Hot Dipped Galvanized Iron Roofing Nails

Galvanized roofing nails are the mostly used roofing nails with less cost and good property. Hot dipped galvanized nails offer higher strength and longer life compared with electro galvanized nails. HDG (simplified term for hot dipped galvanizing) nails can be made with Smooth shank or ring shanks, flat top or umbrella head. Hot dipped galvanized roofing nails with umbrella head and ring shanks are durable and firmly fixed, especially suitable for tropical areas house buildings. For the following reasons: First, Different shank types offer various properties for the roofing nails and give different application effects. Twist ring shank nails are used extensively in post frame construction due to their superior performance. It had approximately twice the withdrawal resistance of smooth-shank nails of the same diameter; second, The umbrella head offers bigger strength compared with flat head nails; third, the HDG treatment guarantees a long term use of the roofing nails.

Types:

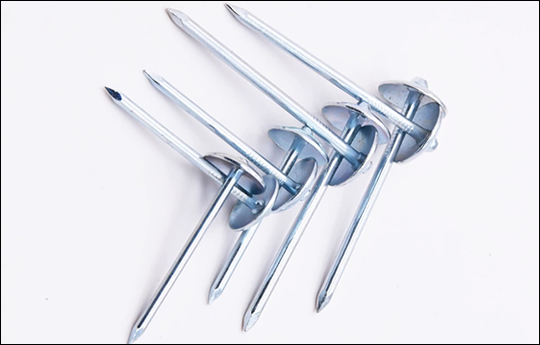

Low Carbon Hot Dipped Galvanized Umbrella Head Roofing Nails

This type of roofing nails are made of construction hardware material 11 Gauge Umbrella Head Nails Specially for Construction And Building Uses.

Supplied in 15 Degree Collated Coil Nails Styles:

15 degree coating coil nails hot dipped galvanized ring coil nails

Technical Information:
Shank types: Smooth shank and twisted shank
Application: Umbrella head ring shank HDG nails are widely suitable for the houses in tropical areas and the installation of roofing sheets.

Product Serial No.:
Model: 1",1-1/4",1-1/2",1-3/4"
Production Place: China
Technical Standards:
Shank Diameter(in):0.120 inch; or in metric system 3mm-4mm
Length(in):1,1-1/4,1-1/2,1-3/4
PCS/Coil:120
Package description: Coil/CTN:60
Material:Q195/Q235

Material Surface Treatment Size Length Available Shank Diam Shank Head Diam
Q195/Q235 Electric Galvanized 1/2"-3.5" 10mm-90mm 3mm-4mm Plain/Twisted 9mm Umbrella

Galvanized Umbrella head Roofing Nails

galvanized umbrella head roofing nails

Available Sizes

Specification

Twisted or Plain

Cap Diameter

9# x 2-1/2,2,3

Twisted or Plain

20mm

10# x 2-1/2,2

Twisted or Plain

20mm

12# x 2,1-1/2

Twisted or Plain

18mm

13# x 1-3/4,2,1-1/2

Twisted or Plain

15mm

Most Popular is BWG9*2.5"
Finish : Hot-Electro Galvanized, Dip Galvanized, Copper , Stainless Steel, Plastic Cap, Aluminium.
Umbrella Roofing Nai without washer:Twisted Shank

Roofing Nails Sizes:
BWG 8x2", 2-1/2" BWG 9x2", 2-1/2", 3"
BWG 10x2, 2-1/2", 3" BWG 11x2", 2-1/2", 3"
60mmx 3.15mmx18mm as per Ethiopian Standard ESG. B4. 120
